PS-BPS Single-Door Cabinet
The PS-BPS single-door cabinet is constructed from SUS304 material (other grades available), featuring a brushed finish. The mounting plate is galvanized (stainless steel optional). This modular enclosure is designed for side-by-side installation. The top panel is removable, and the side panels are detachable for easy access and operation. The door is elevated approximately 25 mm above the floor to ensure smooth and flexible opening. The main frame, fabricated by welding nine-bend profiles, guarantees high structural strength and an IP54 protection rating. Square tube reinforcements on the door can be secured with screws for easy removal. The frame features densely spaced 25 mm modular holes to maximize installation flexibility. Galvanized mounting plates slide into the cabinet from the front via plastic sliders on rails, with U-shaped flanges on both sides for enhanced stability and easier handling.
Core Parameters
Technical Specifications
| Materials | SUS304 (other material grades available) |
| Surface Finish | Brushed finish; galvanized mounting plate (stainless steel optional) |
| Ingress Protection Rating | IP54 (GB4205-1993) |
| Standard Configuration | Front door, back panel, mounting plate, cabinet body, sealing strip, door lock, side panel (optional) |
| Steel Plate Thickness | Frame: 90° profile 1.5mm, Door panel: 2.0mm, Back panel: 1.5mm, Mounting plate: 2.5mm (optional 3.0mm)) |
Product Features

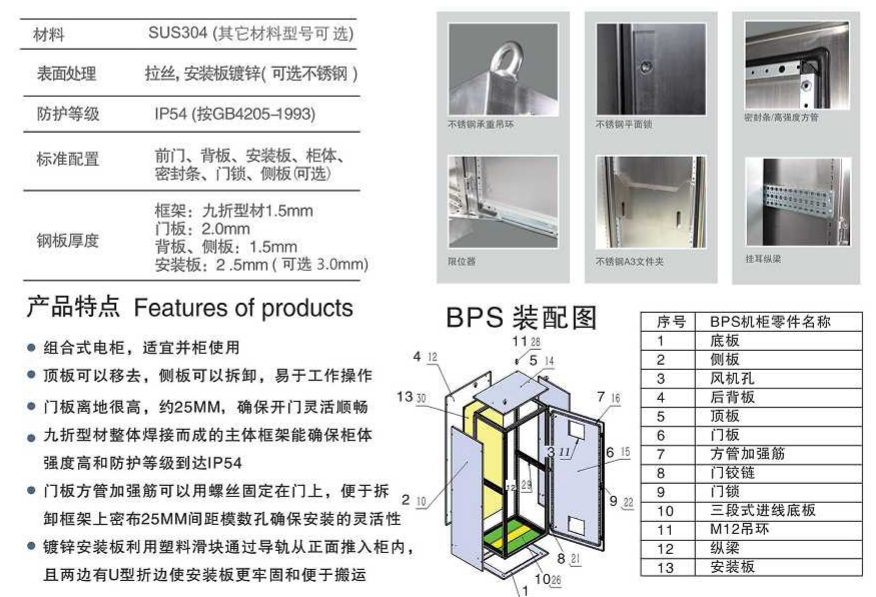

Assembly Drawing and Parts List
Parts List
| No. | Part Name |
|---|---|
| 1 | base plate |
| 2 | Side Panel |
| 3 | Fan hole |
| 4 | back panel |
| 5 | ceiling |
| 6 | Door Panel |
| 7 | Square tube stiffener |
| 8 | Door Hinge |
| 9 | Door Lock |
| 10 | Three-Stage Entry Base Plate |
| 11 | M12 Eyelet |
| 12 | longitudinal beam |
| 13 | Mounting plate |
Stainless Steel Load-Bearing Eye Bolt
Stainless Steel Flat Lock
Sealing strip / High-strength square tube
Limit Switch
Stainless Steel A3 Folder
Hanging I-beam

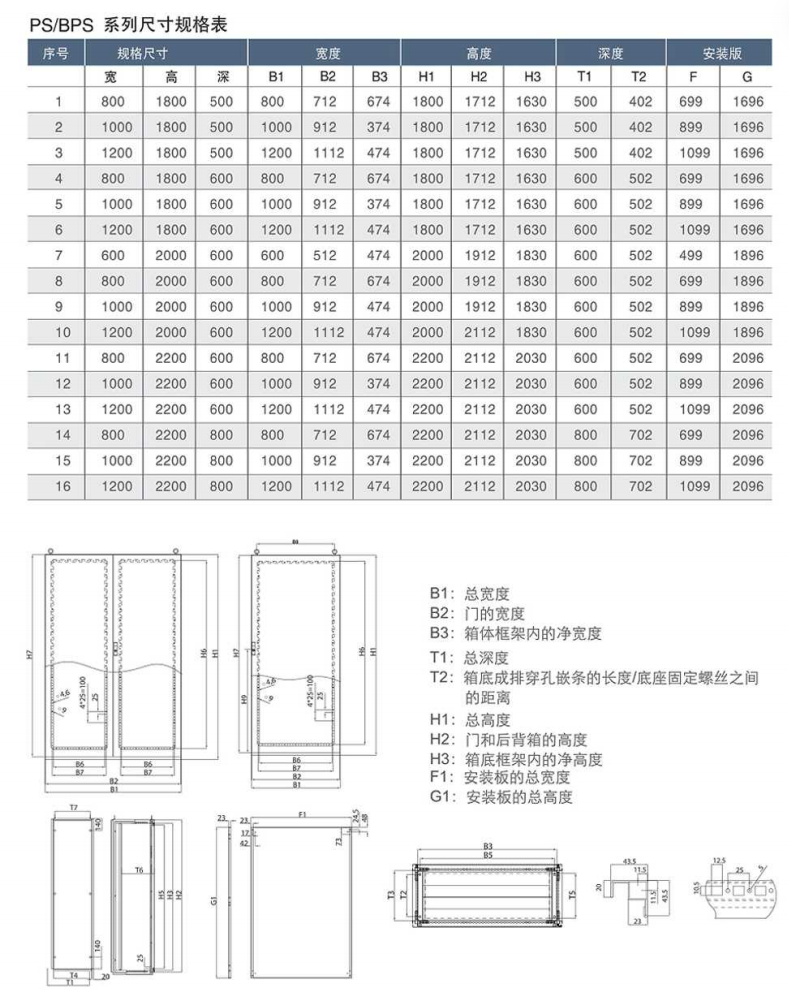

Size Specifications
Size Guide
B1: Overall Width B2: Door Width B3: Clear Width Inside Frame T1: Overall Depth T2: Length of Perforated Strips on Box Bottom / Distance Between Base Mounting Screws H1: Overall Height H2: Door and Back Panel Height H3: Clear Height Inside Box Bottom Frame F1: Mounting Plate Overall Width G1: Mounting Plate Overall Height
