BES Stainless Steel Locker

The ES-BES Stainless Steel Floor-standing Cabinet is constructed from SUS304 material (other grades available). It features a brushed finish, with galvanized mounting plates (stainless steel option available). Designed as a standalone unit, it is not intended for side-by-side installation. The door is elevated significantly from the floor by approximately 25 mm to ensure smooth and flexible operation. The main frame, fabricated through integral welding of five-fold profiles, guarantees high structural strength and an IP protection rating of IP55. Square tube reinforcement bars on the door can be screwed in place for easy removal. The frame includes densely spaced modular holes at 25 mm intervals to maximize installation flexibility. Galvanized mounting plates are inserted from the front using plastic sliders along guide rails; U-shaped flanges on both sides enhance plate stability and ease of handling.

Core Parameters

MaterialsSUS304 (Other material models available)

Surface TreatmentBrushed finish; mounting plate with galvanized coating (stainless steel optional)

Protection RatingIP55 (GB4205-1993)

Standard ConfigurationFront door, back panel, mounting plate, cabinet body, door lock, sealing strip

Steel Plate ThicknessFrame: 50mm profile 1.5mm, Door panel: 2.0mm, Back panel: 1.5mm, Mounting plate: 2.5mm (optional 3.0mm))

Get Proposal

Technical Specifications

Materials	SUS304 (other material grades available)
Surface Finish	Brushed finish; galvanized mounting plate (stainless steel optional)
Ingress Protection Rating	IP55 (GB4205-1993)
Standard Configuration	Front door, rear panel, mounting plate, cabinet body, door lock, sealing strip
Steel Plate Thickness	Frame: 5mm profile 1. Panel: 2.0mm Back panel: 1.5mm Mounting plate: 2.5mm (optional 3.0mm))

Product Features

Standalone electrical cabinet; not suitable for panel integration.

The door panel is raised significantly from the floor, approximately 25mm, ensuring smooth and flexible operation.

The main frame, welded from five-fold profiles as a single unit, ensures high cabinet strength and an IP55 protection rating.

The door panel's square tube reinforcement can be screwed onto the door for easy removal.

The frame features a dense array of 25mm pitch mounting holes to ensure installation flexibility.

The galvanized mounting plate slides into the cabinet from the front via plastic sliders on guide rails. U-shaped flanges on both sides enhance stability and facilitate handling.

Assembly Drawing and Parts List

Parts List

No.	Part Name
1	Three-Stage Entry Base Plate
2	longitudinal beam
3	back panel
4	Fixed Base
5	M12 Eyelet
6	Fan Top Cover
7	Mounting plate
8	Door Panel
9	Fan hole
10	Square tube stiffener
11	Door Hinge
12	Door Lock

Stainless Steel Load-Bearing Eye Bolt

Stainless Steel Flat Lock

Sealing strip / High-strength square tube

Limit Switch

Stainless Steel A3 Folder

Hanging I-beam

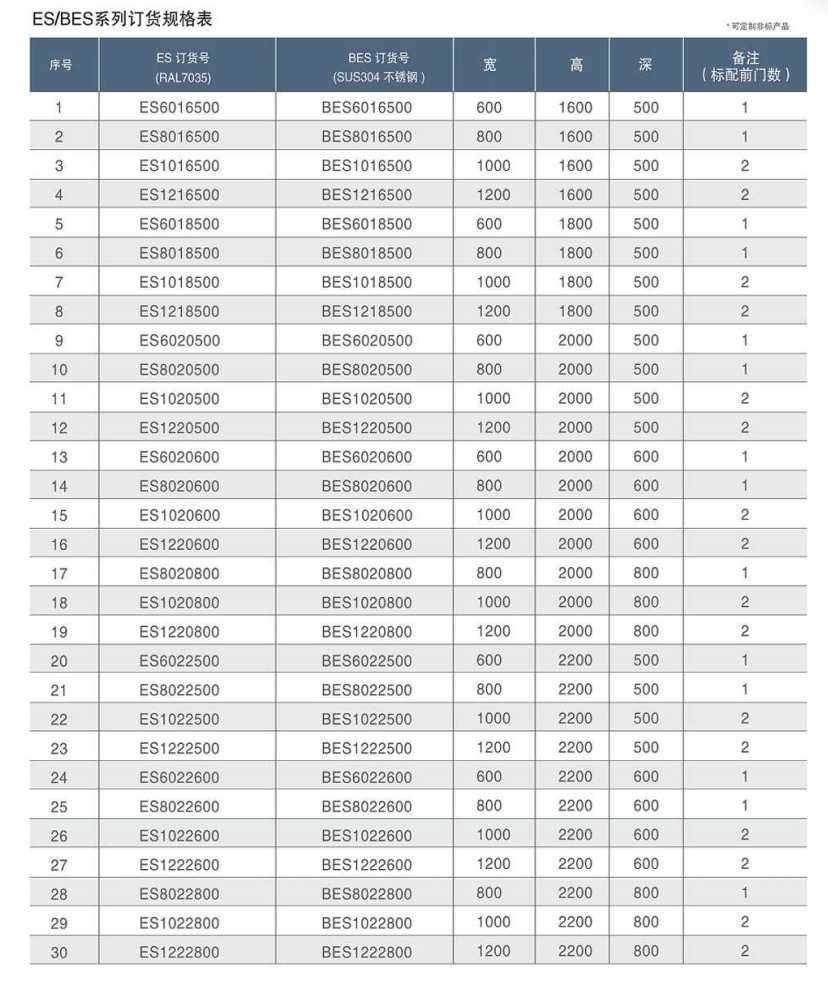

Size Specifications

No.	ES Order Number (RAL7035)	BES Order No. (SUS304 Stainless Steel)	Wide	High	Deep	Remarks (Standard Front Door Count)
1	ES6016500	BES6016500	600	1600	500	1
2	ES8016500	BES016500	800	1600	500	1
3	ES016500	BES1016500	1000	1600	500	2
4	ES216500	BES1216500	1200	1600	500	2
5	ES6018500	BES6018500	600	1800	500	1
6	ES8018500	BES018500	800	1800	500	1
7	ES018500	BES1018500	1000	1800	500	2
8	ES218500	BES1218500	1200	1800	500	2
9	ES6020500	BES6020500	600	2000	500	1
10	ES8020500	BES020500	800	2000	500	1
11	ES020500	BES1020500	1000	2000	500	2
12	ES220500	BES1220500	1200	2000	500	2
13	ES6020600	BES6020600	600	2000	600	1
14	ES8020600	BES020600	800	2000	600	1
15	ES020600	BES1020600	1000	2000	600	2
16	ES220600	BES1220600	1200	2000	600	2
17	ES8020800	BES020800	800	2000	800	1
18	ES020800	BES1020800	1000	2000	800	2
19	ES220800	BES1220800	1200	2000	800	2
20	ES6022500	BES6022500	600	2200	500	1
21	ES8022500	BES022500	800	2200	500	1
22	ES022500	BES1022500	1000	2200	500	2
23	ES222500	BES1222500	1200	2200	500	2
24	ES6022600	BES6022600	600	2200	600	1
25	ES8022600	BES022600	800	2200	600	1
26	ES022600	BES1022600	1000	2200	600	2
27	ES222600	BES1222600	1200	2200	600	2
28	ES8022800	BES022800	800	2200	800	1
29	ES022800	BES1022800	1000	2200	800	2
30	ES222800	BES1222800	1200	2200	800	2

Configuration Guide

1.1: For ES/BES cabinet heights less than 1000 mm, use a single-door configuration with a WY flush lock.
2.2: ES/BES cabinet height ≥ 1000mm features double doors with WY planar locks.
3.3: Standard configuration with 4 lifting rings

Size Guide

B1: Overall Width B2: Clear Width Inside Cabinet Frame B3: Inner Width of Door Stiffener H1: Overall Height H2: Clear Width Inside Cabinet Frame T1: Overall Depth T2: Cabinet Depth T3: Distance from Mounting Plate to Door F: Total Mounting Plate Width G: Total Mounting Plate Height
